22205 TO 22252 , 22308 TO 22344 ,23022 TO 23068 ,23100,23200,23900,24000,24100

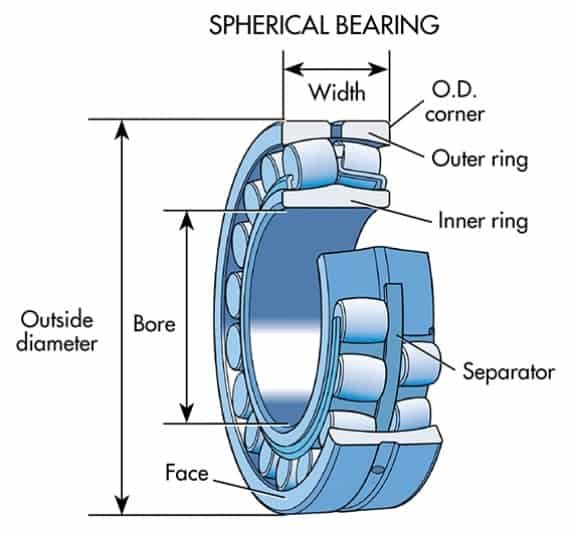

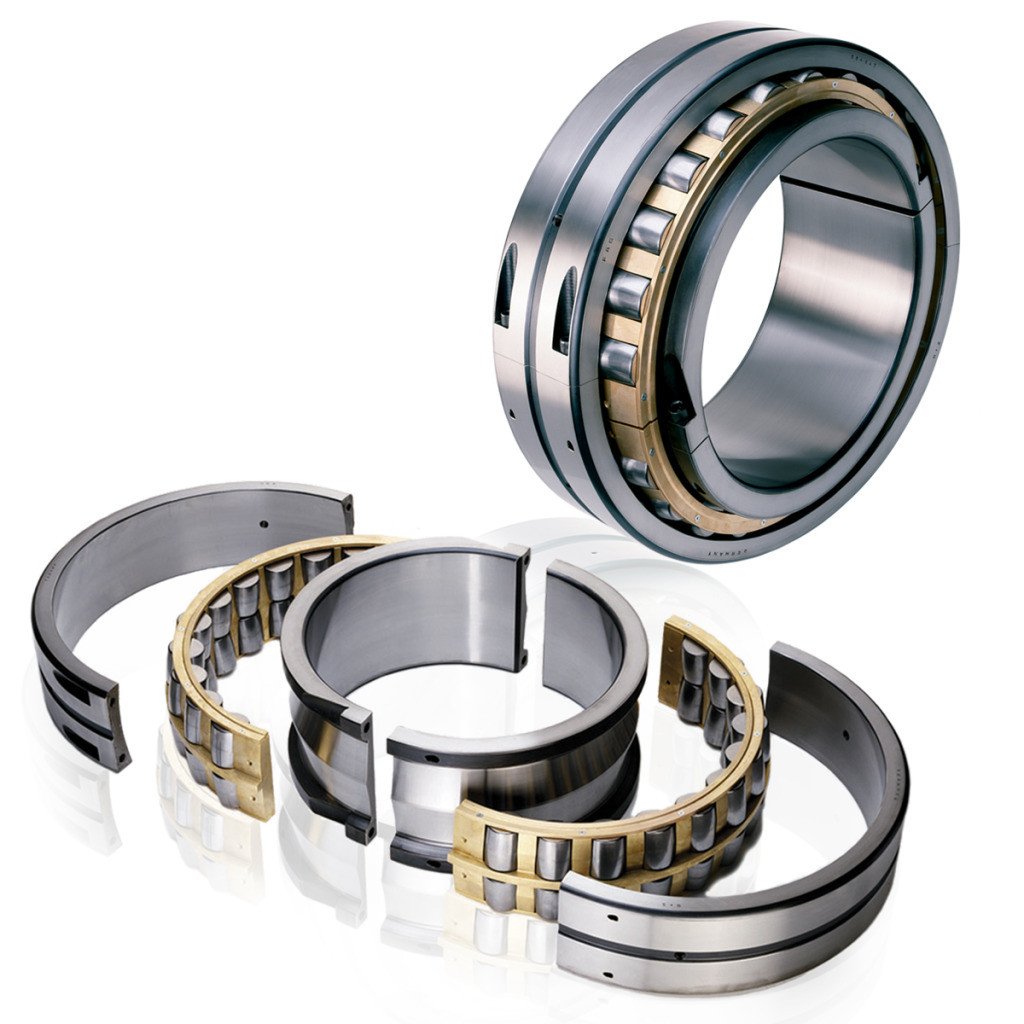

Spherical roller bearing raceways are inclined at an angle to the bearing axis. Instead of straight sides, the rollers have spherical sides that fit onto the spherical raceways and accommodate small misalignment.
Heavy radial and axial loads can be a greater challenge when the shaft is prone to misalignment.
This situation can be handled very well by spherical roller bearings. They have high load-carrying capacities and can manage misalignment between the shaft and housing. This reduces maintenance costs and improves service life.
Spherical roller bearings have a wide range of use cases. They are used in applications where heavy loads, moderate to high speeds and possible misalignment occur. Some examples are off-road vehicles, pumps, mechanical fans, marine propulsion, wind turbines, and gearboxes.
